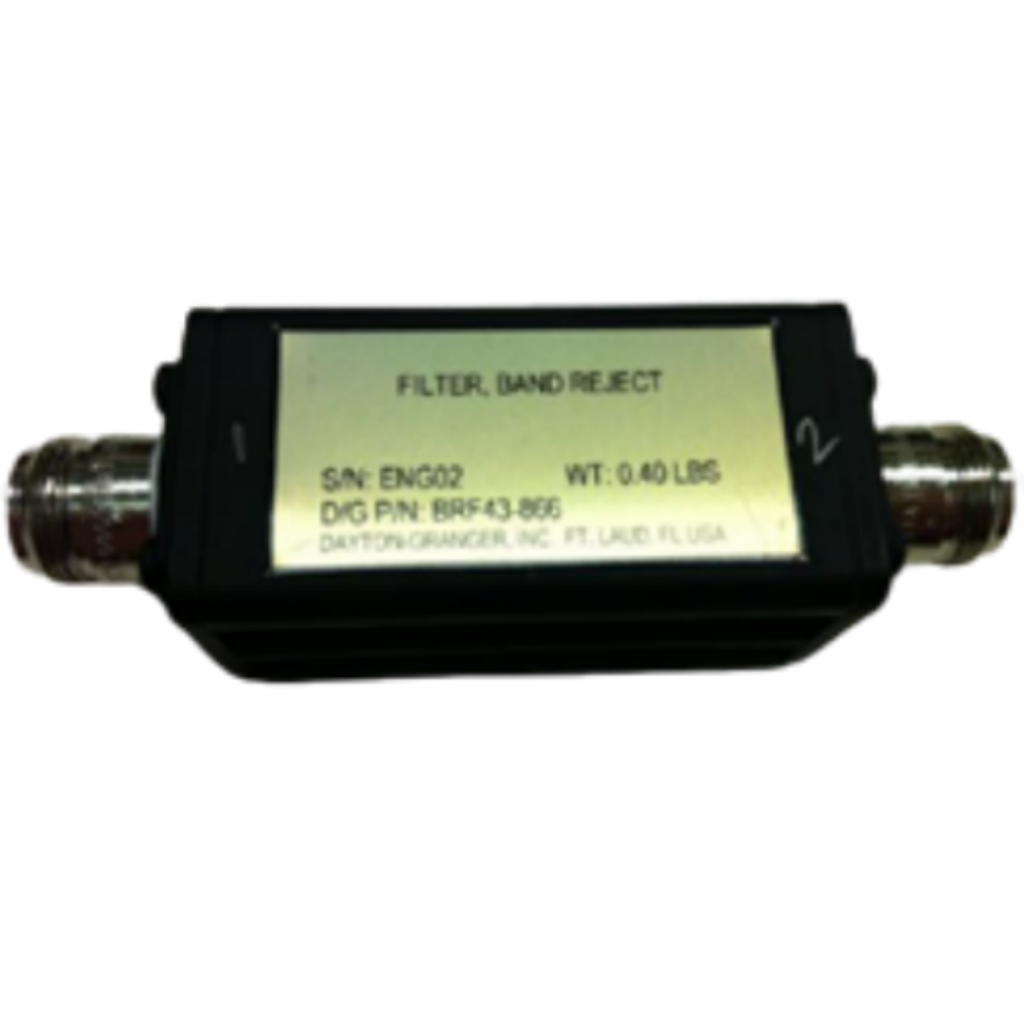

BRF43-866 Band-reject Filter – SRW
Part Number: BRF43-866
DOCUMENTS:
The BRF43-866 filter has excellent electrical properties for isolating VHF/UHF communications, UHF SATCOM and Soldier Radio Waveform (SRW) bands from IFF and TACAN bands. It is extremely durable and will pass all military environmental requirements. This is a cost-effective, light-weight solution for isolating RF systems.
CONTACT USProduct Info
Filter Coupler Electrical Properties
Filter Coupler Physical Properties
Frequency Range (MHz) : Pass Band: 30-450 MHz; 1350-1850 MHz ; Reject Band: 960-1220 MHz
VSWR : 2.0:1 at 30-450 MHz; 1.6:1 at 1350-1850 MHz
Impedance : 50 Ohms
Power : 100 Watts CW
Insertion Loss : 1.0 dB
Attenuation : 20 dB at 960-1220 MHz
VSWR : 2.0:1 at 30-450 MHz; 1.6:1 at 1350-1850 MHz
Impedance : 50 Ohms
Power : 100 Watts CW
Insertion Loss : 1.0 dB
Attenuation : 20 dB at 960-1220 MHz
Material : Aluminum
Finish : Flat
Finish : Flat
Filter Coupler General Properties
Applications : Band-reject filter is designed to be used with multiple radios that operate in the 30 to 450 MHz and the 1350 to 1850 MHz frequency ranges.
Type :
Type :
Federal Specifications
MIL-STD-810F
Product Info
Filter Coupler Electrical Properties
Frequency Range (MHz) : Pass Band: 30-450 MHz; 1350-1850 MHz ; Reject Band: 960-1220 MHz
VSWR : 2.0:1 at 30-450 MHz; 1.6:1 at 1350-1850 MHz
Impedance : 50 Ohms
Power : 100 Watts CW
Insertion Loss : 1.0 dB
Attenuation : 20 dB at 960-1220 MHz
VSWR : 2.0:1 at 30-450 MHz; 1.6:1 at 1350-1850 MHz
Impedance : 50 Ohms
Power : 100 Watts CW
Insertion Loss : 1.0 dB
Attenuation : 20 dB at 960-1220 MHz
Filter Coupler Physical Properties
Material : Aluminum
Finish : Flat
Finish : Flat
Federal Specifications
MIL-STD-810F
