2022-07-15 08:58:53
2022-04-20 15:37:46
Dayton-Granger is now live on YouTube! Check out our latest video, and be sure to subscribe to our page for more videos in the near future.
2022-04-20 15:04:56
Applying experience and innovation to serve aircraft programs worldwide since 1943. Dayton Granger, Inc., a family-owned business, has more than 78 years of experience in designing, testing and manufacturing antennas, electrostatics and lightning protection products for military, commercial and general aviation aircraft applications. With all operations based in our single location in Fort Lauderdale, Florida, … Continued
2022-02-24 19:09:18
This is our commercial wire retriever designed to release antenna wire PN 14379 from chuck jaws of the various antenna components and to remove 7/16” of insulation in precisely the right length. It prevents nicking of the antenna wire when the insulation is cut for removal.
2022-02-23 15:39:14
PN 15ARM300-21 is part of the subassembly of the HF Antenna Longwire System; These non-insulated shackles are fitted with chuck jaws to accept antenna wire P/N 14379. There is direct continuity between the chuck jaws and the termination fitting. This unit includes a grounding strap. Antenna Wire: 14379 Grounding Strap: Yes Load Rating: 400 lbs. … Continued
2022-02-08 19:27:57
Trailing/Tip Retainer, Flat Radius, FAA PMA Compliance Material: Aluminum Alloy 356 or 360 Length: 1.9 Inches Weight: 0.25 oz. Applicable Dischargers: 17770, 16081, 740013, 16125, 16125-1, 17805. Series: 540095 540095-1: -1 bottom of retainer is coated with titanium
2022-02-08 19:20:49
Trailing Retainer, 1.8 in. Radius, FAA PMA Compliance Material: Aluminum Alloy 356 or 360 Length: 3.1 Inches Weight: 0.56 oz. Applicable Dischargers: 740001, 16305, 16785, 740006, D90-313
2022-02-08 19:15:33
Trailing Retainer, Flat Radius, FAA PMA Compliance Material: Aluminum Alloy 356 or 360 Length: 3.2 inches Weight: 0.75 grams Applicable Dischargers: 17770, 16801, 740013, 16125, 16125-1, 17805.
2022-02-08 18:52:27
Trailing Retainer, Flat Radius, FAA PMA Compliance Finish: Aluminum Alloy 356 or 360 Length: 2.9 inches Width: 0.31 inches Applicable Dischargers: 15330, 740019-( ), 16606 Series: 15448 15448-1 15448-2: -2 is the same as 15448 except the screw is replaced with a #10-32 self-locking insert.
2022-02-08 16:04:03
PN DSC740070 is the overall aircraft lightning protection kit for the CRJ100/200 winglets and horizontal end caps. It consists of left winglet, right winglet, left horizontal end cap, and right horizontal end cap kits. The kits are attached to the trailing edge and grounded to the airframe. The kits consist of aluminum strips with DG … Continued
2022-02-08 15:56:00

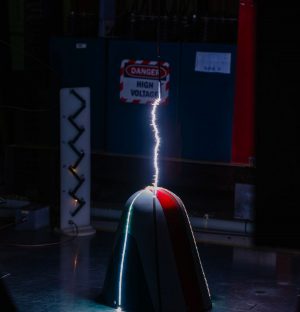

The lightning diverter strips described in the below attachment are designed to minimize or prevent damage to aircraft radomes and other dielectric structures in the event of a lightning strike. The strips consist of metal segments connected by a resistive track on a dielectric substrate. The strips are designed so that an ionized channel is … Continued
2022-02-08 15:12:28
Dayton-Granger, Inc. introduces a new product to their lightning protection line. It’s called ULTRAGUARD. This new and improved lightning diverter strip consists of a series of rectangular segments that produces a lower breakdown voltage than conventional diverter strips. The new elongated-rectangle design reduces the number of segments per given length. With fewer segments per length, … Continued
2022-01-19 18:30:06
It is recommended that all retainers be mechanically riveted or screwed to the aircraft structure and that a good quality adhesive (DG PN 15348) be used to seal the area underneath the retainer. In cases where rivets or screws are not possible, such as honeycomb surfaces, our conductive silver loaded epoxy (DG PN 16307) should … Continued
2022-01-19 18:27:54
It is recommended that all retainers be mechanically riveted or screwed to the aircraft structure and that a good quality adhesive (DG PN 15348) be used to seal the area underneath the retainer. In cases where rivets or screws are not possible, such as honeycomb surfaces, our conductive silver loaded epoxy (DG PN 16307) should … Continued
2022-01-19 18:12:26
Radius: Flat Material: Aluminum Alloy 356 or 360 Length (in): 3.8 Weight (oz): 1 Applicable Dischargers: 16330 and 17750 Series: 16340 16340-1
2022-01-19 18:00:35
For screw-on type tip dischargers. Radius: Flat Material: Aluminum Alloy 356 or 360 Length (in): 1.5 Weight (oz): 0.32 Applicable Dischargers: 16930, 16930-1 and 15340. Resistance between stud and base 1.5 mΩ max
2022-01-19 17:51:22
Applicable Dischargers: 16310, 16315, 740007, 15344.
2022-01-18 20:04:15
Mounting Type: 611R Series Retainers Noise Quieting: 30+ dB For Commercial & Business Class Aircraft Length: 3-1/2” FAA PMA, MIL-DTL-9129E Weight: 0.15 Oz
2022-01-18 19:00:34
Mounting Type: 610R Series Retainers (16335, 16700, 16820, 16900, and 740015) Noise Quieting: 50 dB For Commercial & Business Class Aircraft Length: 10-11/32” The set screw is supplied with a self-locking feature FAA PMA, MIL-DTL-9129E Weight: 0.93 Oz
2022-01-18 18:50:27
Mounting Type: Two #4-40 Screws, 100% counter-sunk Mounting Retainer: RC90-220-( ),15401, 15448, 15660-1 Noise Quieting: 40+ dB For General Aviation Aircraft (speeds below 300 mph) Length: 8-3/4” FAA PMA, MIL-DTL-9129E Weight: 0.17 Oz
