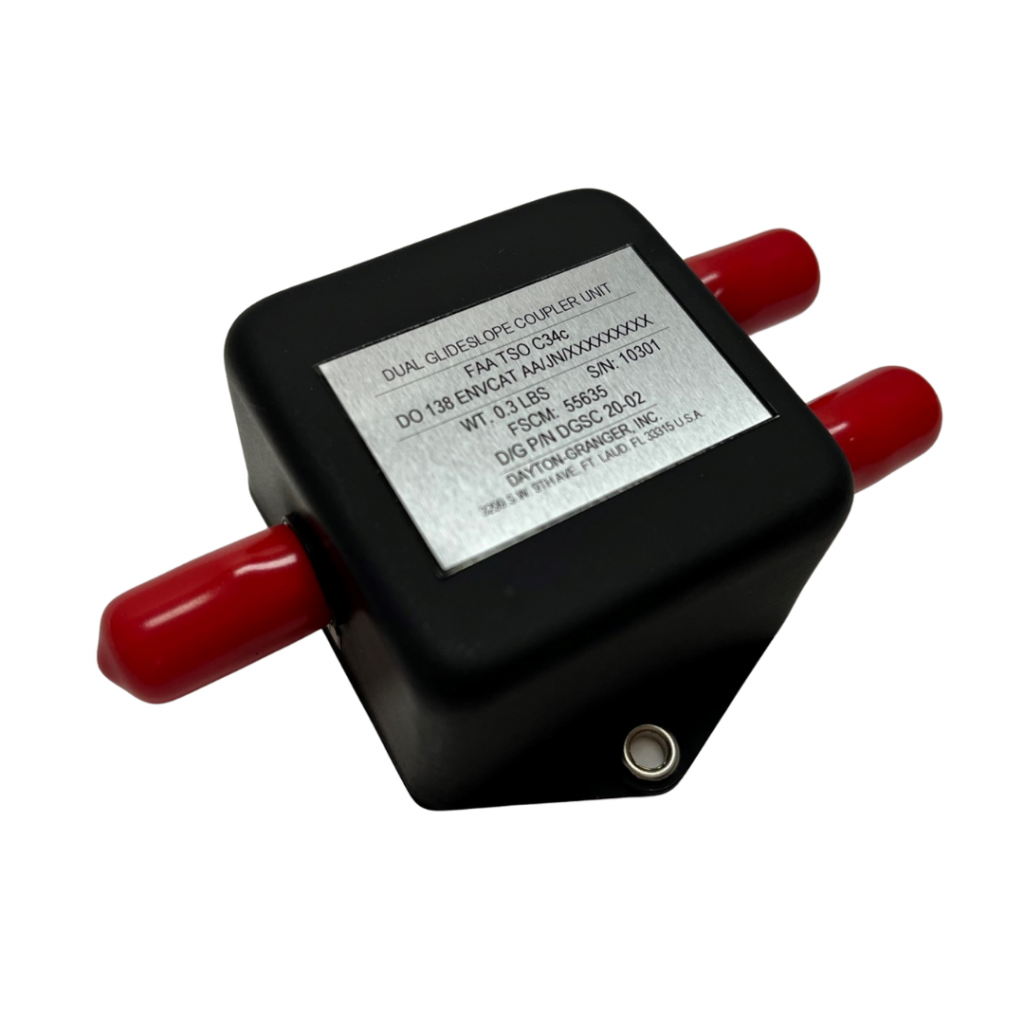

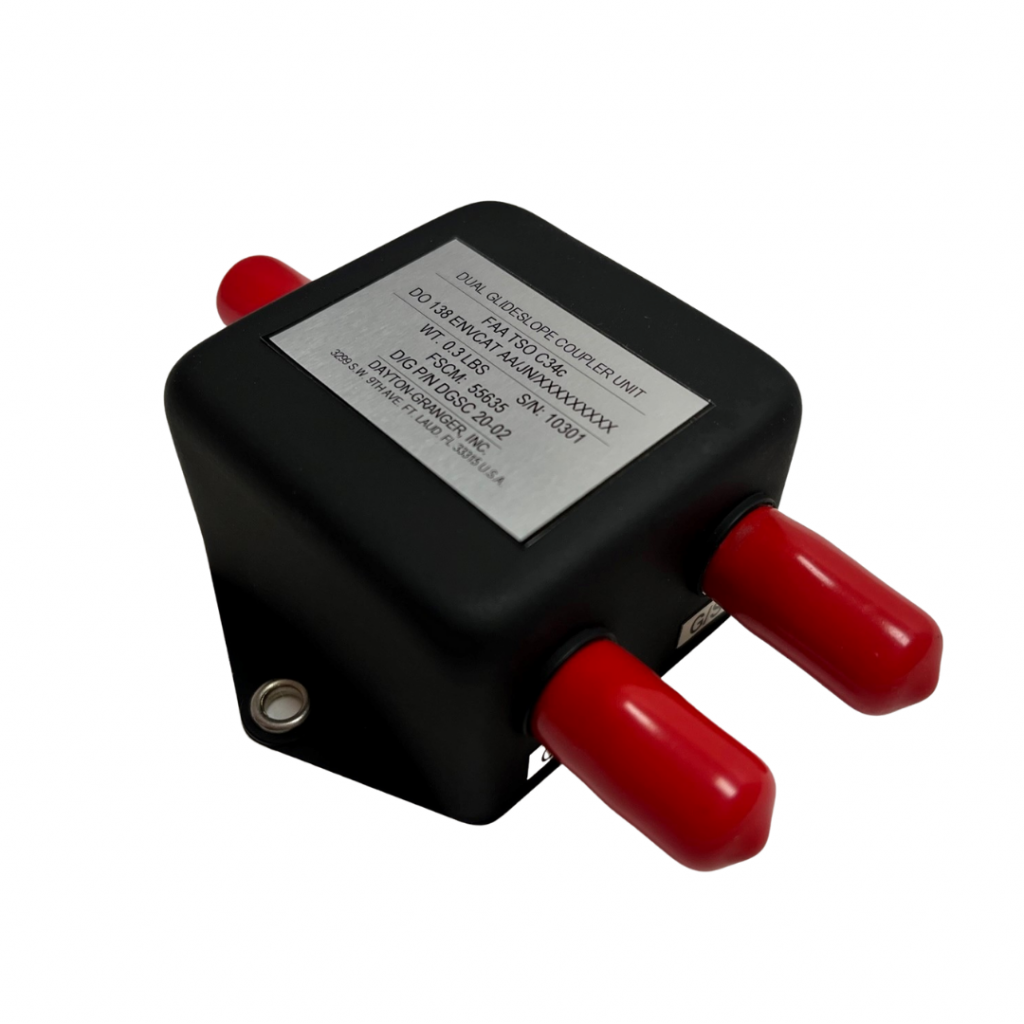

DGSC20-02 Dual Glideslope Coupler
Part Number: DGSC20-02
The DGSC20-02 is a high isolation coupler which connects one antenna to two glideslope receivers. The circuit design maintains high isolation and low VSWR, and allows the use of any suitable coax cable lengths between the antenna and the coupler and between the coupler and the receivers.
CONTACT USProduct Info
Filter Coupler Electrical Properties
Filter Coupler Physical Properties
Frequency Range (MHz) : 329-335
VSWR : 1.5:1
Impedance : 50 Ohms
Insertion Loss : Less than .5 dB
Isolation : 20 dB
VSWR : 1.5:1
Impedance : 50 Ohms
Insertion Loss : Less than .5 dB
Isolation : 20 dB
Connector : BNC
Height : 1.25
Weight (lb) : .3
Material : Steel
Finish : Flat Black
Height : 1.25
Weight (lb) : .3
Material : Steel
Finish : Flat Black
Filter Coupler General Properties
Type : Two-VOR & Two-glideslope
Federal Specifications
TSO C-34c
