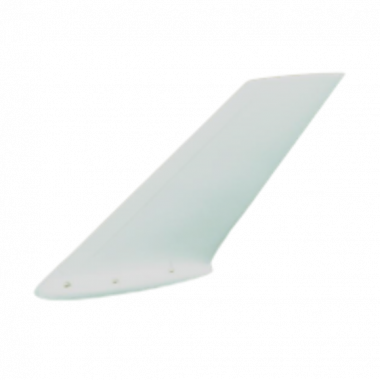

720033 Antenna VHF/UHF
Part Number: 720033
The 720033 is a military-qualified, combination VHF/UHF communications antenna. All the internal components are encapsulated into the sealed base cavity in order to prevent moisture intrusion.
CONTACT USProduct Info
Antenna Type and Function
Antenna Electrical Properties
Type : Blade
Sub-Type : VHF , UHF
Function : Communication
Sub-Type : VHF , UHF
Function : Communication
Frequency Range (MHz) : 20-88 MHz, 108-152 MHz,152-174 MHz, 225-550 MHz
Polarization : Vertical
Impedance : 50 Ohms
Polarization : Vertical
Impedance : 50 Ohms
Antenna Physical Properties
Antenna Mechanical Properties
Connector : TNC
Height : 12
Weight : 2.5
Color : White
Height : 12
Weight : 2.5
Color : White
Speed Rating : Mach 0.6
Federal Specifications
Federal Specifications : MIL-STD-810C
Product Info
Antenna Type and Function
Type : Blade
Sub-Type : VHF , UHF
Function : Communication
Sub-Type : VHF , UHF
Function : Communication
Antenna Electrical Properties
Frequency Range (MHz) : 20-88 MHz, 108-152 MHz,152-174 MHz, 225-550 MHz
Polarization : Vertical
Impedance : 50 Ohms
Polarization : Vertical
Impedance : 50 Ohms
Antenna Physical Properties
Connector : TNC
Height : 12
Weight : 2.5
Color : White
Height : 12
Weight : 2.5
Color : White
Antenna Mechanical Properties
Speed Rating : Mach 0.6
Federal Specifications
Federal Specifications : MIL-STD-810C
