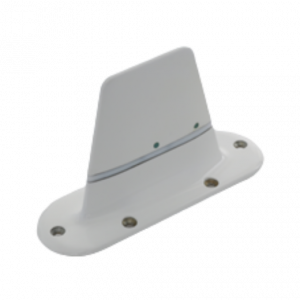

750147-( ) Antenna L-Band Blade White with HN Connector
Part Number: 750147, 750147-1, 750147-2
The 750147-( ) series is a military-qualified, low-profile, metal blade antenna. All the materials used are corrosion-resistant. Its low-profile design minimizes drag.
CONTACT USProduct Info
Antenna Type and Function
Antenna Electrical Properties
Type : Blade
Sub-Type : L-Band
Function : Communication
Sub-Type : L-Band
Function : Communication
Frequency Range (MHz) : 700-960 MHz; 960-1215 MHz
Polarization : Vertical
Impedance : 50 Ohms
Polarization : Vertical
Impedance : 50 Ohms
Antenna Physical Properties
Antenna Mechanical Properties
Connector : SMA
Height : 3.2
Weight : 0.4
Color : White
Height : 3.2
Weight : 0.4
Color : White
Speed Rating : Mach 1.0+
Federal Specifications
Federal Specifications : MIL-A-25708; TSO-C66c
Product Info
Antenna Type and Function
Type : Blade
Sub-Type : L-Band
Function : Communication
Sub-Type : L-Band
Function : Communication
Antenna Electrical Properties
Frequency Range (MHz) : 700-960 MHz; 960-1215 MHz
Polarization : Vertical
Impedance : 50 Ohms
Polarization : Vertical
Impedance : 50 Ohms
Antenna Physical Properties
Connector : SMA
Height : 3.2
Weight : 0.4
Color : White
Height : 3.2
Weight : 0.4
Color : White
Antenna Mechanical Properties
Speed Rating : Mach 1.0+
Federal Specifications
Federal Specifications : MIL-A-25708; TSO-C66c
