FM10-322-4 VHF Communications Antenna
Part Number: FM10-322-4

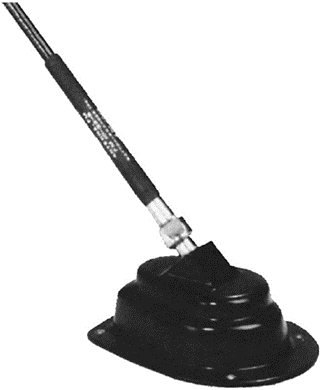

The FM10-322-4 consists of a coupler and a fiberglass whip, and is designed to be mounted on fixed-wing aircraft or on the tail boom of a helicopter. It can also be mounted on ground vehicles. The swept-back design reduces wind loading in aircraft applications. The antenna is constructed of fiberglass and epoxy materials. All the internal components are foamed in place in order to avoid problems that may arise due to aircraft shock and vibration.
Parts Included
FM10-22-5: Whip FM Antenna
FM20-322-4: Antenna Coupler
CONTACT USProduct Info
Antenna Type and Function
Antenna Electrical Properties
Type : Blade
Sub-Type : VHF
Function : Communication
Sub-Type : VHF
Function : Communication
Frequency Range (MHz) : 30-88 MHz
Polarization : Vertical
Radiation Pattern : Omnidirectional
Impedance : 50 Ohms
Power : 25 watts
Polarization : Vertical
Radiation Pattern : Omnidirectional
Impedance : 50 Ohms
Power : 25 watts
Antenna Physical Properties
Antenna Mechanical Properties
Connector : BNC
Height : 40.6
Weight : 1.3
Material : Fiberglass Whip
Color : Olive
Height : 40.6
Weight : 1.3
Material : Fiberglass Whip
Color : Olive
Speed Rating : 250 Knots
