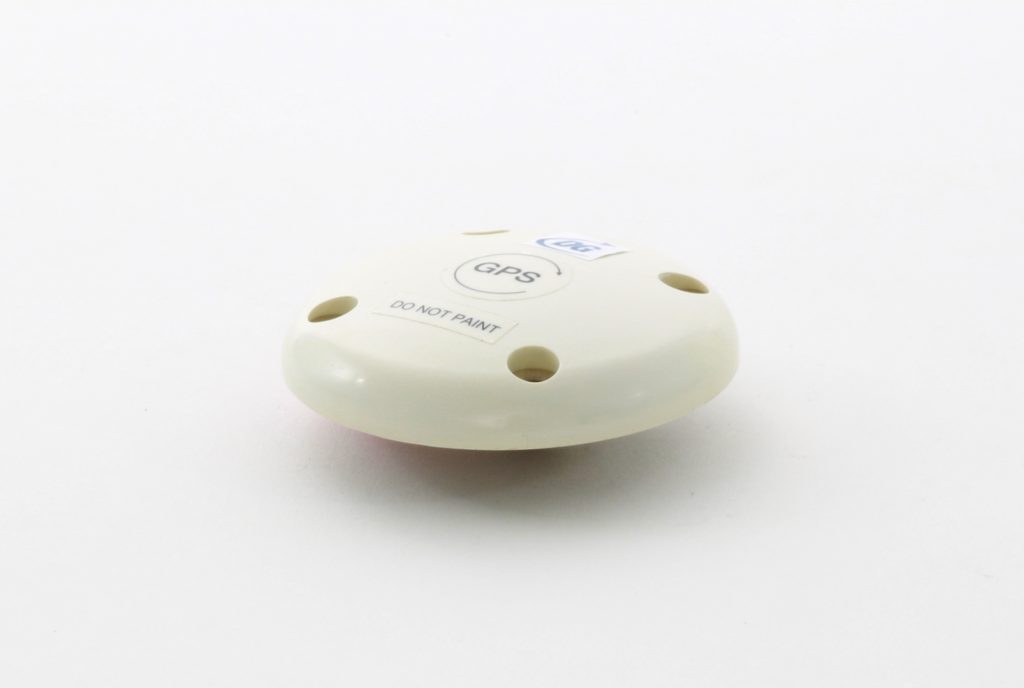

GPS10-614 Antenna GPS
Part Number: GPS10-614
The GPS10-614 is a low-cost, low-profile, single-frequency, passive GPS antenna. The radiating element is protected by a high-strength, injection-molded radome. The antenna is hermetically sealed to protect it against moisture intrusion and the element is DC grounded for lightning protection purposes.
CONTACT USProduct Info
Antenna Type and Function
Antenna Electrical Properties
Type : Blade
Sub-Type : ELT , GPS
Function : Navigation
Sub-Type : ELT , GPS
Function : Navigation
Frequency Range (MHz) : 1575.42±10 MHz
Polarization : RHC
Impedance : 50 Ohms
Polarization : RHC
Impedance : 50 Ohms
Antenna Physical Properties
Antenna Mechanical Properties
Connector : TNC
Height : 0.7
Weight : 0.3
Color : White
Height : 0.7
Weight : 0.3
Color : White
Speed Rating : 600 knots
