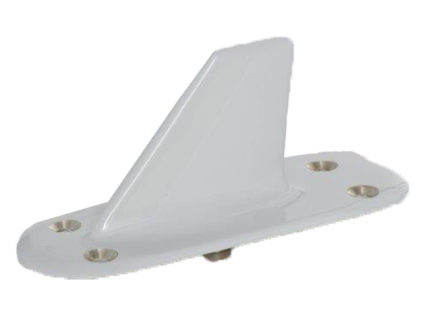

L10-611-( ) Antenna L-Band
Part Number: L10-611-( )
The L10-611-( ) antenna series are each small, swept-back, low-profile blades with minimum drag and excellent side load capabilities. They are light-weight while having superior strength. The element is DC grounded for lightning protection.
CONTACT USProduct Info
Antenna Type and Function
Antenna Electrical Properties
Type : Blade
Sub-Type : L-Band
Function : Interigation
Sub-Type : L-Band
Function : Interigation
Frequency Range (MHz) : 960-1220 MHz
Polarization : Vertical
Impedance : 50 Ohms
Polarization : Vertical
Impedance : 50 Ohms
Antenna Physical Properties
Antenna Mechanical Properties
Connector : HN
Height : 2.18
Weight : 0.25
Color : White
Height : 2.18
Weight : 0.25
Color : White
Speed Rating : Mach 1.0+
Federal Specifications
Federal Specifications : TSO-C66c; TSO-C74c; TSO-112; MIL-A-25708c
