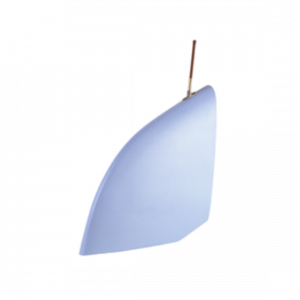

VF10-108-( ) VHF Communications Conformal Antenna
Part Number: VF10-108, VF10-108-2, VF10-108-3, VF10-108-4, VF10-108-5, VF10-108-6, VF10-108-7
The VF10-108-( ) is a custom designed, vertically-polarized, VHF communications antenna. The antenna is integrated into the vertical fin tip structure of the Cessna 500 aircraft.
| DG PN | Connector Type | Static Discharger | Finish |
| VF10-108-3 | BNC | DG PN 16930
Null Strike Tip Discharger |
White Epoxy Primer |
| VF10-108-4 | BNC | DG PN 15340
Micro-point Tip Discharger |
White Epoxy Primer |
| VF10-108-5 | BNC | None | White Epoxy Primer |
| VF10-108-6 | BNC | DG PN 16930
Null Strike Tip Discharger |
White Epoxy Primer
(w/ resistive coating) |
| VF10-108-7 | BNC | DG PN 15340
Micro-point Tip Discharger |
White Epoxy Primer
(w/ resistive coating) |
Product Info
Antenna Type and Function
Antenna Electrical Properties
Type : Blade
Sub-Type : VHF
Function : Communication
Sub-Type : VHF
Function : Communication
Frequency Range (MHz) : 118-136 MHz
Polarization : Vertical
Impedance : 50 Ohms
Polarization : Vertical
Impedance : 50 Ohms
Antenna Physical Properties
Antenna Mechanical Properties
Connector : BNC
Weight : 2.0
Color : White
Weight : 2.0
Color : White
Speed Rating : N/A
Federal Specifications
Federal Specifications : TSO-C37d; TSO-C38d
