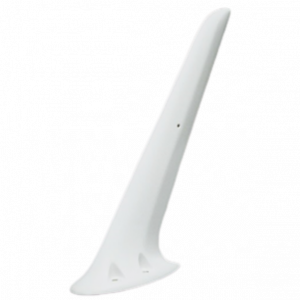

VF10-185 VHF Communications Antenna
Part Number: VF10-185
DOCUMENTS:
The VF10-185 is a vertically-polarized, VHF communications antenna, which operates over the frequency range of 118 to 136 MHz. The antenna consists of a radiating element surrounded by a fiberglass radome. The matching circuitry is incorporated into the base of the antenna structure. The antenna is equipped with a thru- hold for mounting one end of an ADF sense wire antenna. The internal components are foamed in place to avoid problems that may arise due to shock and vibration.
CONTACT USProduct Info
Antenna Type and Function
Antenna Electrical Properties
Type : Blade
Sub-Type : VHF
Function : Communication
Sub-Type : VHF
Function : Communication
Frequency Range (MHz) : 118-136 MHz
Polarization : Vertical
Radiation Pattern : Omnidirectional
Impedance : 50 Ohms
Power : 100 Watts
Polarization : Vertical
Radiation Pattern : Omnidirectional
Impedance : 50 Ohms
Power : 100 Watts
Antenna Physical Properties
Antenna Mechanical Properties
Connector : BNC
Height : 14
Weight : 1.5
Material : Fiberglass
Color : White
Height : 14
Weight : 1.5
Material : Fiberglass
Color : White
Speed Rating : 450 knots
Product Info
Antenna Type and Function
Type : Blade
Sub-Type : VHF
Function : Communication
Sub-Type : VHF
Function : Communication
Antenna Electrical Properties
Frequency Range (MHz) : 118-136 MHz
Polarization : Vertical
Radiation Pattern : Omnidirectional
Impedance : 50 Ohms
Power : 100 Watts
Polarization : Vertical
Radiation Pattern : Omnidirectional
Impedance : 50 Ohms
Power : 100 Watts
Antenna Physical Properties
Connector : BNC
Height : 14
Weight : 1.5
Material : Fiberglass
Color : White
Height : 14
Weight : 1.5
Material : Fiberglass
Color : White
Antenna Mechanical Properties
Speed Rating : 450 knots
