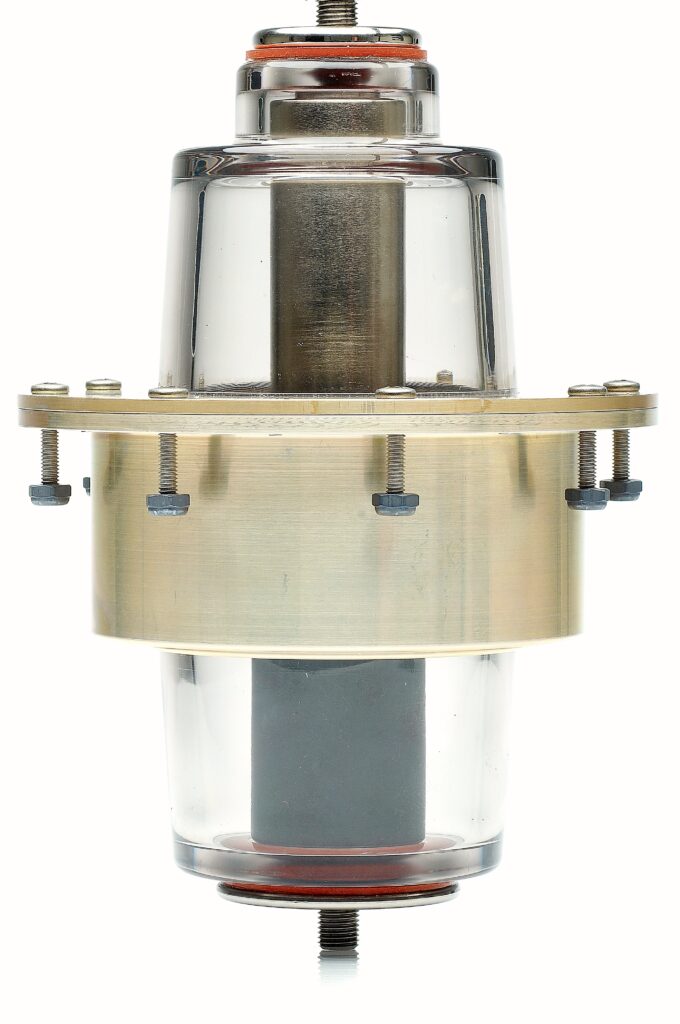

14652 HF Lightning Arrestor
Part Number: 14652
The 14652 provides the most reliable lightning protection available for HF antenna systems. The unit consists of a series, isolating capacitor that blocks approximately 99.9% of the lightning energy from entering radio and other avionics receivers. The series capacitor isolates the receiver from the lightning voltage while the spark-gap shunts the lightning current to airframe ground. The spark-gap is factory set at 10 kV. The unit withstands multiple lightning strikes, has a 12-strike capability, and meets the requirements of MIL-A-9094C. This Arrestor is designed for HF antenna systems.
Accessories and Options
- Top Connector – 14572
- Bottom Connector – 14563 90 degrees
- Bottom Connector – 540453 straight
Type : HF
Resistance (Megaohm / feet) : 1 MΩ ± 50%
Ionization (KV) : 10 kV ± 10%; 26 kV DC
Length (in) : 7.39
Resistance (Megaohm / feet) : 1 MΩ ± 50%
Ionization (KV) : 10 kV ± 10%; 26 kV DC
Length (in) : 7.39
