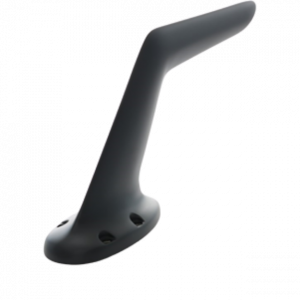

UF10-825 UHF Antenna
Part Number: UF10-825
DOCUMENTS:
The UF10-825 is a UHF communications antenna that offers coverage in the 225 to 512 MHz frequency band. The antenna has the same form and footprint as DG PN VFS10-90-( ) antenna. It is qualified to MIL-STD-810C.
CONTACT USProduct Info
Antenna Type and Function
Antenna Electrical Properties
Type : Blade
Sub-Type : UHF
Function : Communication
Sub-Type : UHF
Function : Communication
Frequency Range (MHz) : 225-512 MHz
Polarization : Vertical
Radiation Pattern : Omnidirectional
Impedance : 50 Ohms
Power : 100 Watts
Polarization : Vertical
Radiation Pattern : Omnidirectional
Impedance : 50 Ohms
Power : 100 Watts
Antenna Physical Properties
Antenna Mechanical Properties
Connector : BNC
Height : 8.2
Weight : 1.2
Material : Fiberglass
Color : Black
Height : 8.2
Weight : 1.2
Material : Fiberglass
Color : Black
Speed Rating : 600 knots
Federal Specifications
Federal Specifications : MIL-STD-810C
Product Info
Antenna Type and Function
Type : Blade
Sub-Type : UHF
Function : Communication
Sub-Type : UHF
Function : Communication
Antenna Electrical Properties
Frequency Range (MHz) : 225-512 MHz
Polarization : Vertical
Radiation Pattern : Omnidirectional
Impedance : 50 Ohms
Power : 100 Watts
Polarization : Vertical
Radiation Pattern : Omnidirectional
Impedance : 50 Ohms
Power : 100 Watts
Antenna Physical Properties
Connector : BNC
Height : 8.2
Weight : 1.2
Material : Fiberglass
Color : Black
Height : 8.2
Weight : 1.2
Material : Fiberglass
Color : Black
Antenna Mechanical Properties
Speed Rating : 600 knots
Federal Specifications
Federal Specifications : MIL-STD-810C
